Shadow-Caster 6-Channel Digital Switch Module Shadow-NET Control f/Single Color 3rd Party Lighting [SCM-PWR6]

6-Channel Digital Switch Module Shadow-NET™ Control for Single Color & 3rd Party Lighting

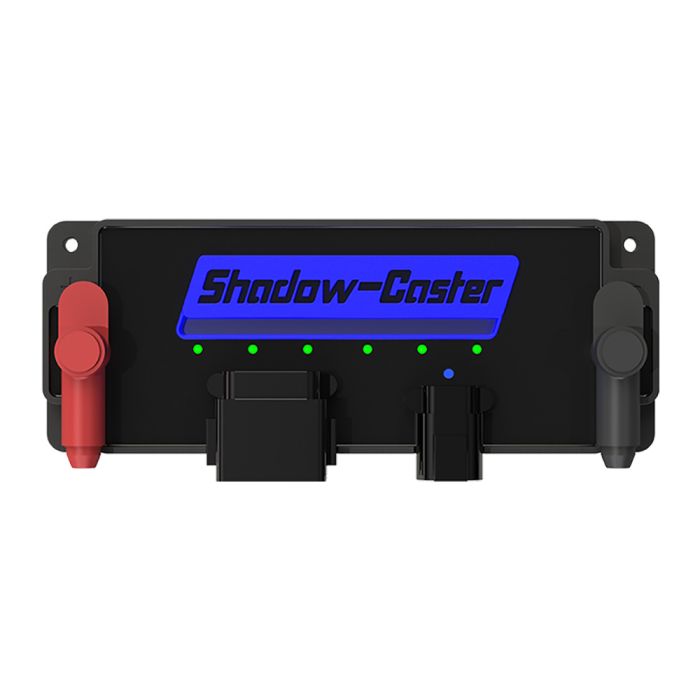

The 6-channel digital switch module offers a convenient way to integrate any standard light with the Shadow-Caster™ MFD interface. Simply plug in the module to the Shadow-NET™ system and switch support will automatically populate on the screen.

Each module provides 6 channels of support, that will handle up to 10 amps per channel with digital fault protection. There is also a manual switch input for overriding the interface.

Features:

• 6 independent digital switches
• Control other brands of lights with the Shadow-Caster™ MFD interface and phone app
• Digital over current fault protection
• Manual switch override
• Green/red LEDs provide the status of each channel
• Full integration with Shadow-NET™ interface
• The blue backlight indicates the power state

Specifications:

• 12/24V operation
• 10A each channel
• 5/16” power lugs
• IP67 Deutsch connections
• Power lug protection boots

What's Included?

• 6 channel digital power switch
• Mounting hardware 4 #8 PH x.5”
• Pre-wired mating connectors
• 3 year standard warranty

Specifications:

• Box Dimensions: 3"H x 6"W x 9"L WT: 1.35 lbs
• UPC: 850024342590
